WiFi Bottle Opener

In December 2022, with Christmas fast approaching, I realized I hadn't gotten my Dad a present yet. I wanted something memorable, not just boring socks. I remembered we used to have an Elvis Presley bottle opener that would sing "Viva Las Vegas" when opening a bottle - we all found it hilarious, but one day it broke.

I set out to find this bottle opener but found nothing. It was a really old product, no longer being sold. Time to make one! This project became an exploration of RF communication, electronics, and creative problem-solving under tight Christmas deadlines.

RF Communication Demo

Watch the RF transmitter in action - note the constantly flickering LED due to RF noise, which completely turns off when the bottle opener contacts are connected.

The Challenge

Initially, I bought a standard singing bottle opener from Amazon, hoping to reverse-engineer it. After tearing it apart, I found a basic sound module that I couldn't reprogram, but I discovered how it worked: the bottle opener had two metal sections, and the metal bottle cap would complete a circuit to trigger the sound.

The Innovation

When I couldn't fit a programmable sound module inside the bottle opener, I had to think outside the box. The solution: use the kitchen's Sonos sound system as the speaker, with an RF transmitter (usually quite small) inside the bottle opener communicating wirelessly to a Raspberry Pi receiver.

System Architecture

The system consists of two main components working in wireless harmony:

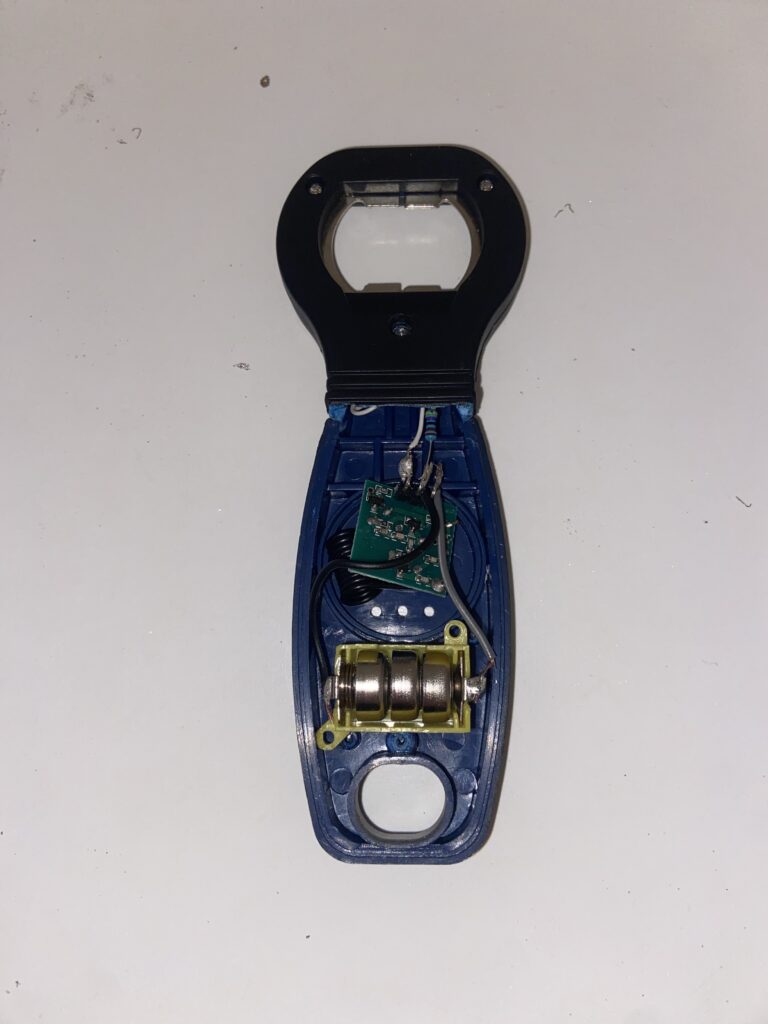

• Transmitter Unit: RF transmitter module embedded inside the bottle opener
• Receiver Unit: Raspberry Pi with RF receiver connecting to Sonos system
• Audio System: Kitchen Sonos speakers for high-quality audio playback
• Trigger Mechanism: Original bottle opener contact system for activation

Hardware Components

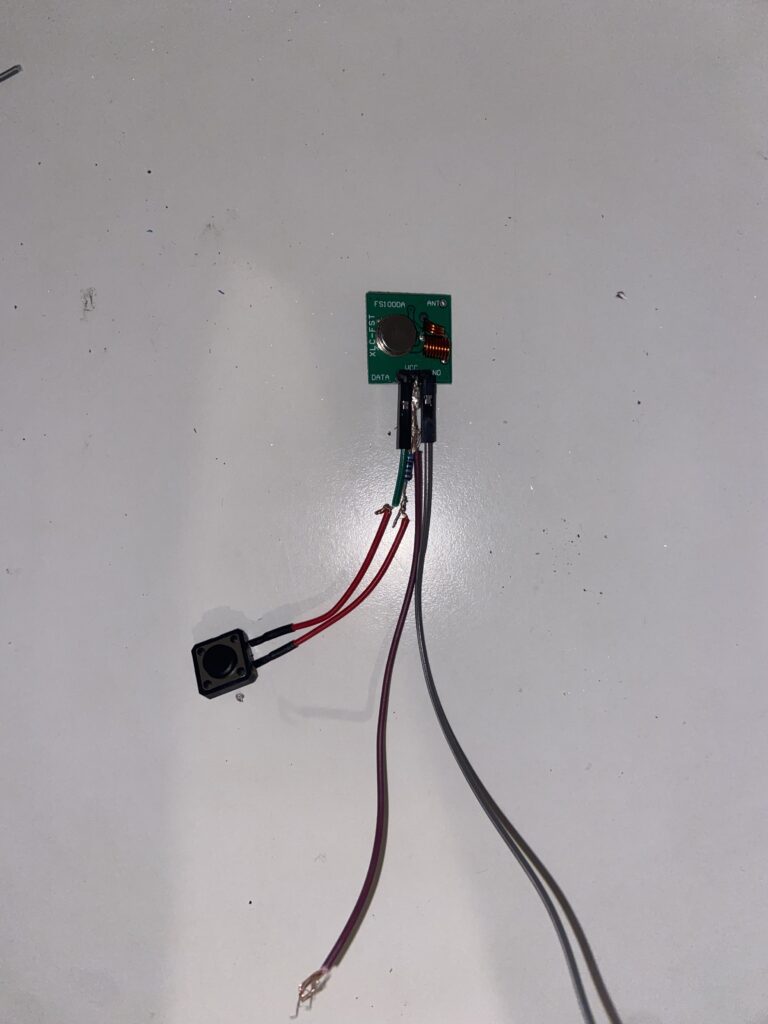

• RF Modules: Dedicated RF transmitter and receiver pair
• Raspberry Pi 3: Main controller with GPIO pin interface
• Original Bottle Opener: Salvaged contact mechanism and housing
• Power Supply: Battery pack for portable transmitter operation

Software Implementation

The Raspberry Pi software stack included:

• RPi.GPIO Library: Detection of inputs from RF receiver
• SoCo Library: Python library for Sonos speaker control
• Media Server: Local hosting of "Viva Las Vegas" audio file
• API Integration: Communication with local Sonos API for playback

Circuit Design

I created electrical diagrams for both sides of the system:

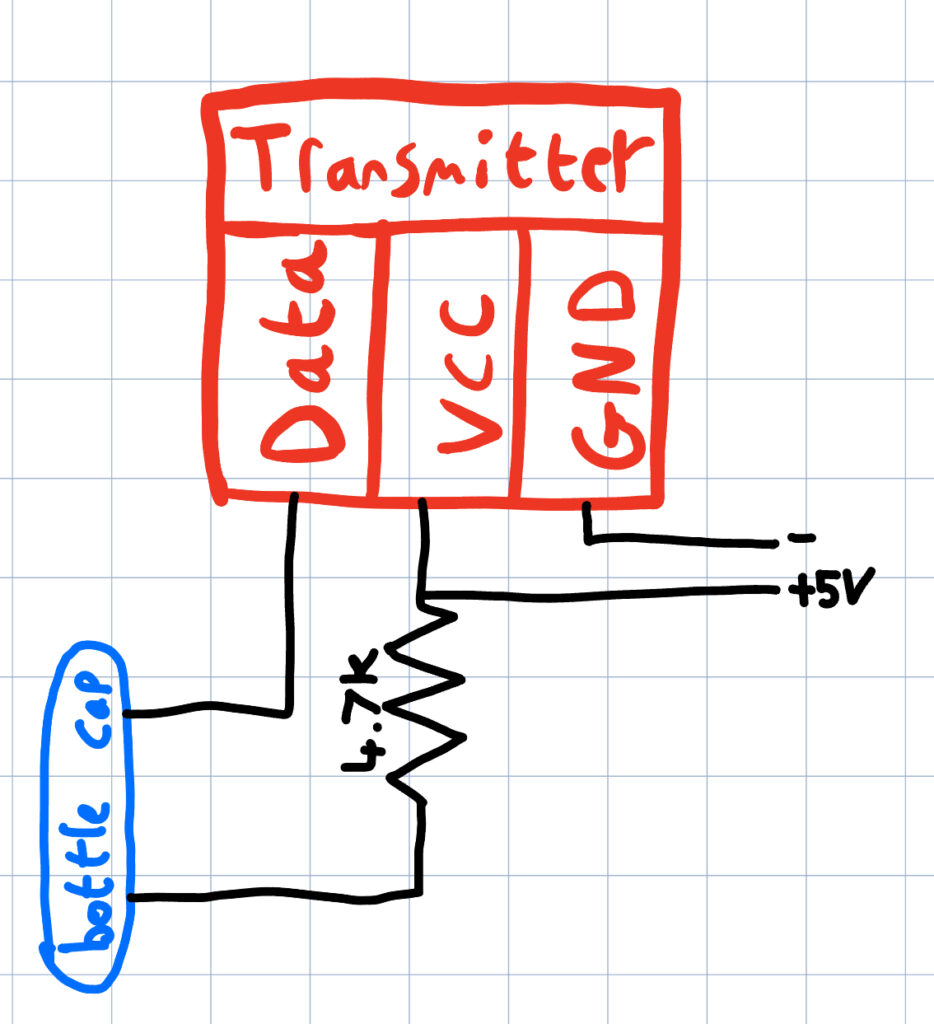

• Transmitter Side: RF transmitter module connected to bottle opener contact points

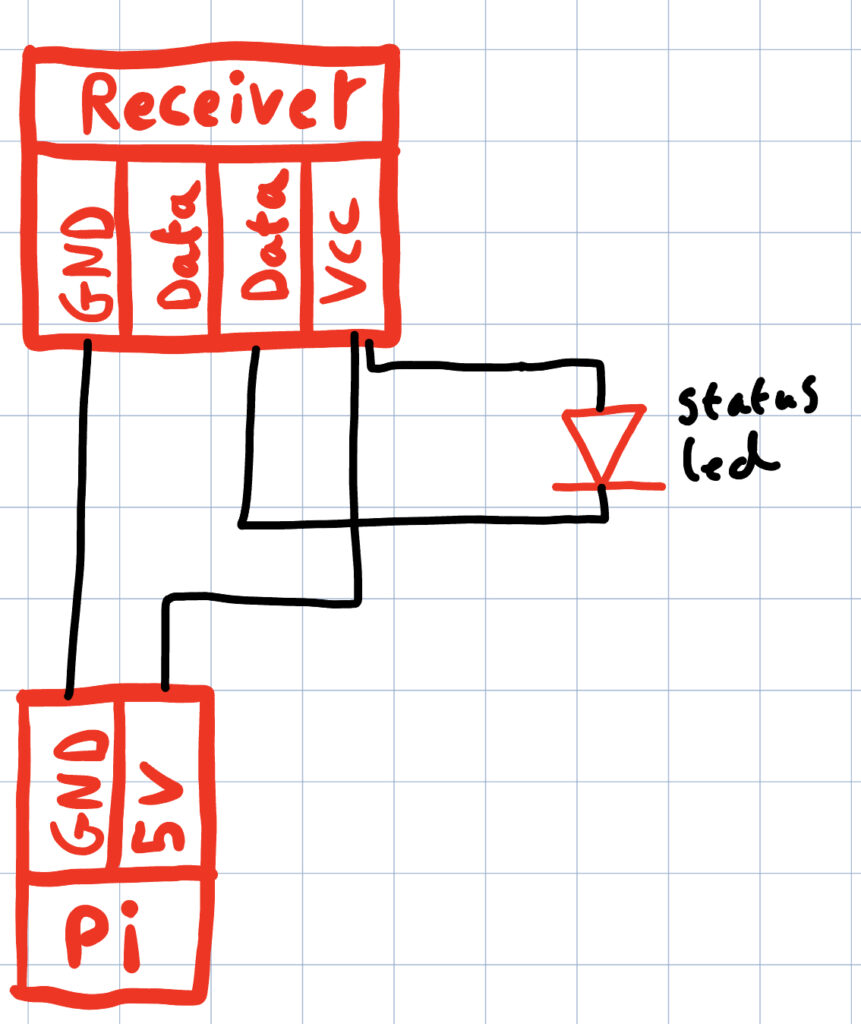

• Receiver Side: RF receiver connected to Raspberry Pi GPIO pins
• Power Management: Efficient battery usage for transmitter longevity
• Signal Processing: GPIO pin monitoring for RF signal detection

Time Pressure

Having committed to this being my Dad's sole Christmas present, I couldn't just accept tons of his gifts and present him with a pile of electrical junk. The deadline pressure forced creative problem-solving and rapid iteration.

Space Constraints

The first major technical challenge was discovering that normal sound modules wouldn't fit inside the bottle opener casing. This led to the innovative RF transmission approach, vastly expanding the project scope but creating a more interesting solution.

Soldering Skills

I already had some soldering experience, but nothing like this - tiny intricate wires. Alongside the time pressure of christmas and having no backup if I broke one of the pre-attached wires in the case, I had to learn fast but carefully, with no room for error.

RF Interference Issues

The most significant unresolved challenge was RF interference in a typical smart home environment. The system would occasionally trigger randomly, causing the kitchen speakers to erupt with "VIVA LAS VEGAS" unexpectedly. This highlighted the need for:

• Signal Tuning: Specific RF frequency configuration
• Noise Filtering: Better discrimination between signal and interference
• Voltage Detection: More sophisticated GPIO pin voltage monitoring
• Protocol Implementation: Digital encoding for reliable communication

Project Outcomes

While the project was a partial success with some reliability issues, it provided invaluable learning experiences and created a memorable (if occasionally surprising) Christmas gift.

Technical Achievements

• Wireless Communication: Successfully implemented RF transmission system
• API Integration: Seamless Sonos system integration for audio playback
• Hardware Modification: Creative repurposing of existing bottle opener mechanism
• Rapid Prototyping: Quick iteration from concept to working prototype

Skills Developed

• Electronics: RF communication principles and circuit design
• Soldering: Precision soldering techniques under pressure
• Raspberry Pi: GPIO programming and hardware interfacing
• Python Programming: Hardware control and API integration
• Problem Solving: Creative solutions when original plans fail
• Project Management: Working under tight deadlines
• RF Systems: Understanding wireless communication protocols

Future Improvements

If revisiting this project, potential improvements would include:

• Frequency Selection: Use less congested RF frequencies
• Signal Processing: Advanced filtering to reduce false triggers
• Power Optimization: Improved battery life for transmitter unit
• User Interface: Simple controls for system configuration

Project Impact

Despite the occasional random activation, the bottle opener became a conversation starter and demonstrated practical applications of IoT concepts in creative gift-making. The project showcased how everyday objects can be enhanced with modern technology.
